Recommended Handlebar Specs For 2020 MX Machines

When it comes to handlebars I am a pain in the ass. The height, width, rise, and position is very important to me between each bike that I test. I find that you can’t run the same handlebar bend on every bike, even though I like a bend on one bike, sometimes it doesn’t feel as good on another. Every bike has a different rider triangle so you must adapt to different bar bends if you change motorcycle brands. As the years progress, dirt bikes evolve as well as their dimensions so don’t be that rider who sticks with a Honda High bend that you ran back in 1997. As you may have heard in my “Handlebar 101” podcast (show #70), if the bar feels too low (height), you should try to get the bar height from your bar mounts and not the handlebar itself. Getting the height from your bar mounts allows you to keep proper technique (position) through corners (where most of the time is made up on a track). This article was a big hit last year and by the shear number of emails I get about handlebars, I wanted to update some bends for 2020. Here are some of my favorite bar bends right here for 2020 as well as a recommendation on bar/bar mount heights for different sized riders.

As you will notice most of these handlebars on this list are Pro Taper and Renthal. This doesn’t mean that I am trying to sell you on these handlebar brands. This is just what I personally like myself and should be taken as such. If you like another bar brand, that is fine, simply look at the dimension of the preferred handlebar and try to mimic that dimension to your favorite handlebar company. There are tons of handlebar companies out there, but for me, Renthal and Pro Taper are the bars that I prefer. Again as always for testing purposes, I tried a wide range of handlebars in my shootout so go give that podcast a listen when you can (Show #70). There are some great options out there. Again….This doesn’t mean other handlebars are crap. For transparency reasons, I am letting you know that these are the companies I prefer. I receive ZERO dollars from Renthal or Pro Taper.

• We are using 2020 models for reference, but if you have an older model and are concerned on which handlebar to run please feel free to email me at kris@keeferinctesting.com.

• All Dimensions are in (MM).

2020 HONDA CRF 450R/250R:

Notes: The stock bar bend on the 2019/2020 Honda CRF 450R/250R has finally been updated to a bend that is lower and flatter than previous years. This bend is actually quite good and we usually leave the stock Renthal handlebar on the Honda. If you think you would like more flex you can try the optional bar bend below.

Preferred: Stock Renthal 839 FatBar (W)802 (H)91 (R)52 (S)51

Optional For More Flex: Pro Taper EVO SX Race (W)800 (H)87 (R)54.5 (S)54

Optional For 6’0-6’2: Factory Suzuki (W) 800 (H)92 (R)62 (S)47

Bar Mount Height: Stock

2020 YAMAHA YZ450F/250F:

Notes: Yamaha also did a good job on creating a bar that is fairly neutral for different sized riders, it’s just too bad their seat and footage height is all screwed up for taller riders. It’s lower height seems to fit a wide variety of riders (5’8-6’0), but taller riders may want to put the bar mounts in forward hole/back position.

Preferred: Pro Taper EVO SX Race (W)800 (H)87 (R)54.5 (S)54

Optional 6’0-6’2: Renthal Fatbar 602 bend (W)801 (H)89 (R)59 (S)56

Bar Mount Height: Stock

2020 KAWASAKI KX450/250:

Notes: 7/8 lives on! Kawasaki managed to keep the good ol’ 971 Renthal 7/8 bars, which are pretty damn good! I like a 7/8 bar and I actually stick with the 7/8 theme if I can. The 7/8 bar does bend a little easier, but you get a lot of flex when the track gets rough. If you’re an aggressive rider who likes a little more positive steering than go to a 1-1/8 handlebar for increased stiffness.

Preferred: Renthal 7/8 983 bend (Villopoto/Stewart) (W)808 (H)95 (R)58 (S)55

Oversize Crossbar Option: Pro Taper Fuzion Henry/Reed (W)800 (H)92 (R)66 (R)40 (S)55

Optional For 6’0-6’2: Pro Taper EVO Factory Suzuki (W) 800 (H)92 (R)62 (S)47

Bar Mount Height: Stock

2020 SUZUKI RM-Z450/250:

Notes: The stock Suzuki bend has some sweep to it, which makes the bike feel small at times. I prefer to open the cockpit up a little.

Preferred: Pro Taper EVO SX Race bend (W)800 (H)87 (R)54.5 (S)54

Optional: ODI Podium Flight CountryBoy bend (W)803 (H)92 (R)56 (S)52

Optional For 6’0-6’2: Pro Taper EVO Factory Suzuki (W) 800 (H)92 (R)62 (S)47

Bar Mount Height: Stock

2020 HUSQVARNA FC450/250:

Notes: Husqvarna comes with a very low bend and that fits the ergos of this bike, but the width of the bar is too long. I actually like the stock handlebar bend on the Husqvarna, however I cut the handlebar down to 803mm, which really helps the character of the Husqvarna when leaning into corners.

Preferred: Stock Pro Taper EVO handlebar cut to 803mm (W)811 (H)80 (R)39.5 (S)51

Optional: Pro Taper EVO Carmichael bend (W)800 (H)77 (R)40 (S)55

Optional For 6’0-6’2: Pro Taper EVO Factory Suzuki (W) 800 (H)92 (R)62 (S)47

Bar Mount Height: Plus 5mm

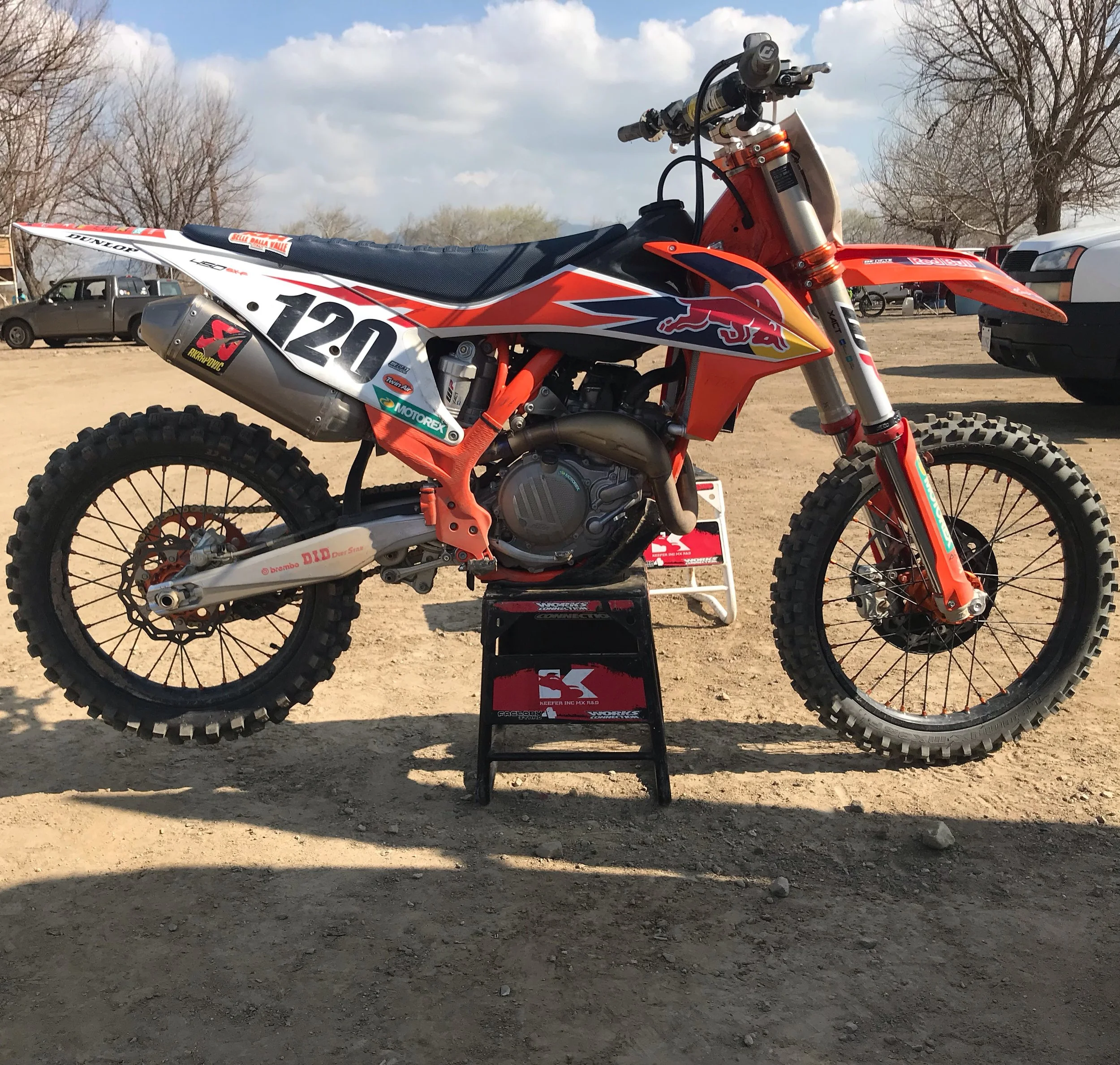

2020 KTM 450SX-F/250SX-F:

Notes: The stock bar bend shape on the orange brigade is also decent, but it’s too stiff and long. If you don’t think it is too stiff, you can simply cut the bar to 803mm and run it!

Preferred: Renthal 821 bend cut to 803mm (W)813 (H)78 (R)42 (S)54

Optional: Pro Taper EVO Husqvarna Stock cut to 803mm (W) 811 (H)77 (R)40 (S)55

Optional For 6’0-6’2: Pro Taper EVO Factory Suzuki (W) 800 (H)92 (R)62 (S)47

Bar Mount Height: Plus 5mm

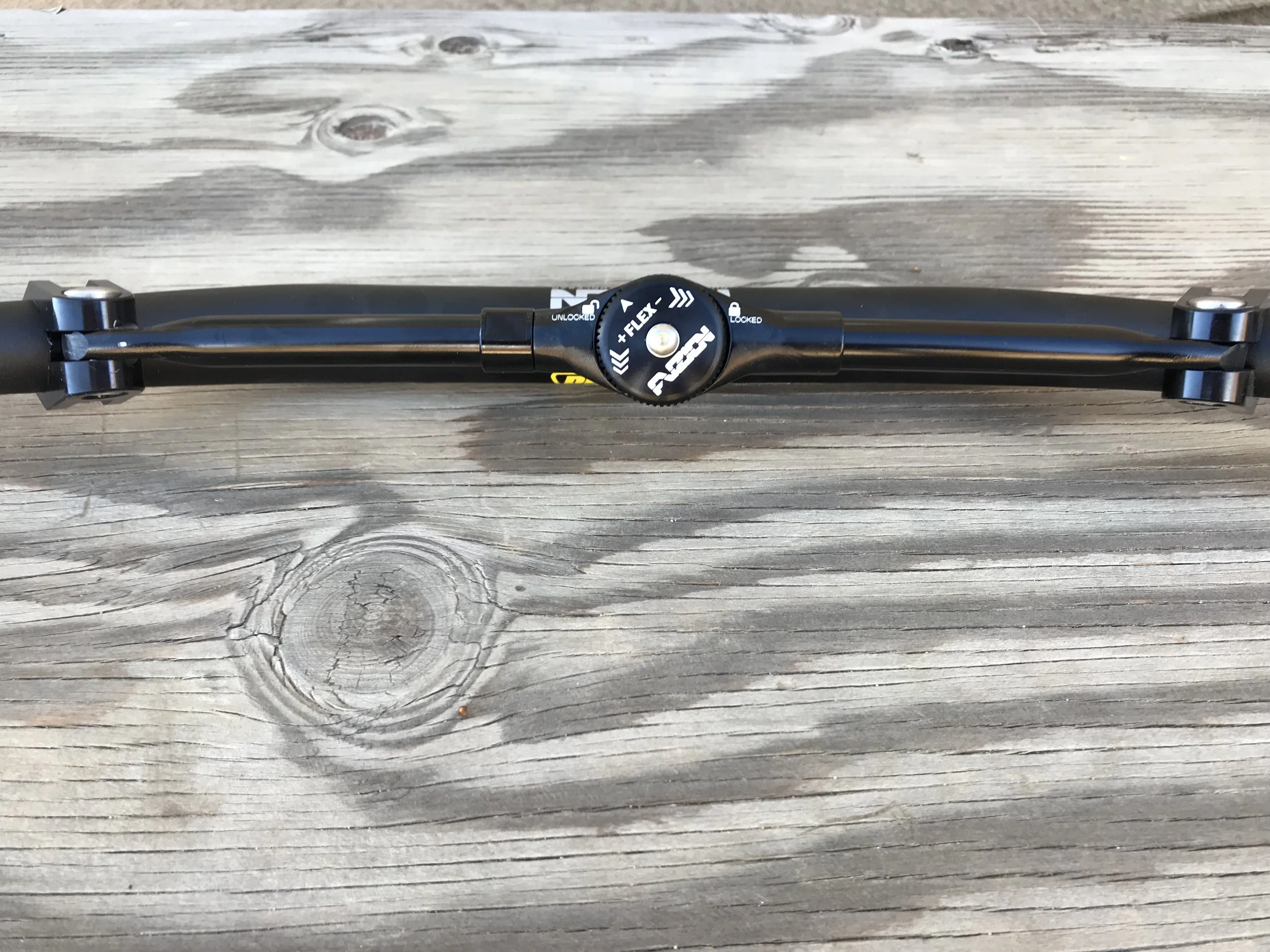

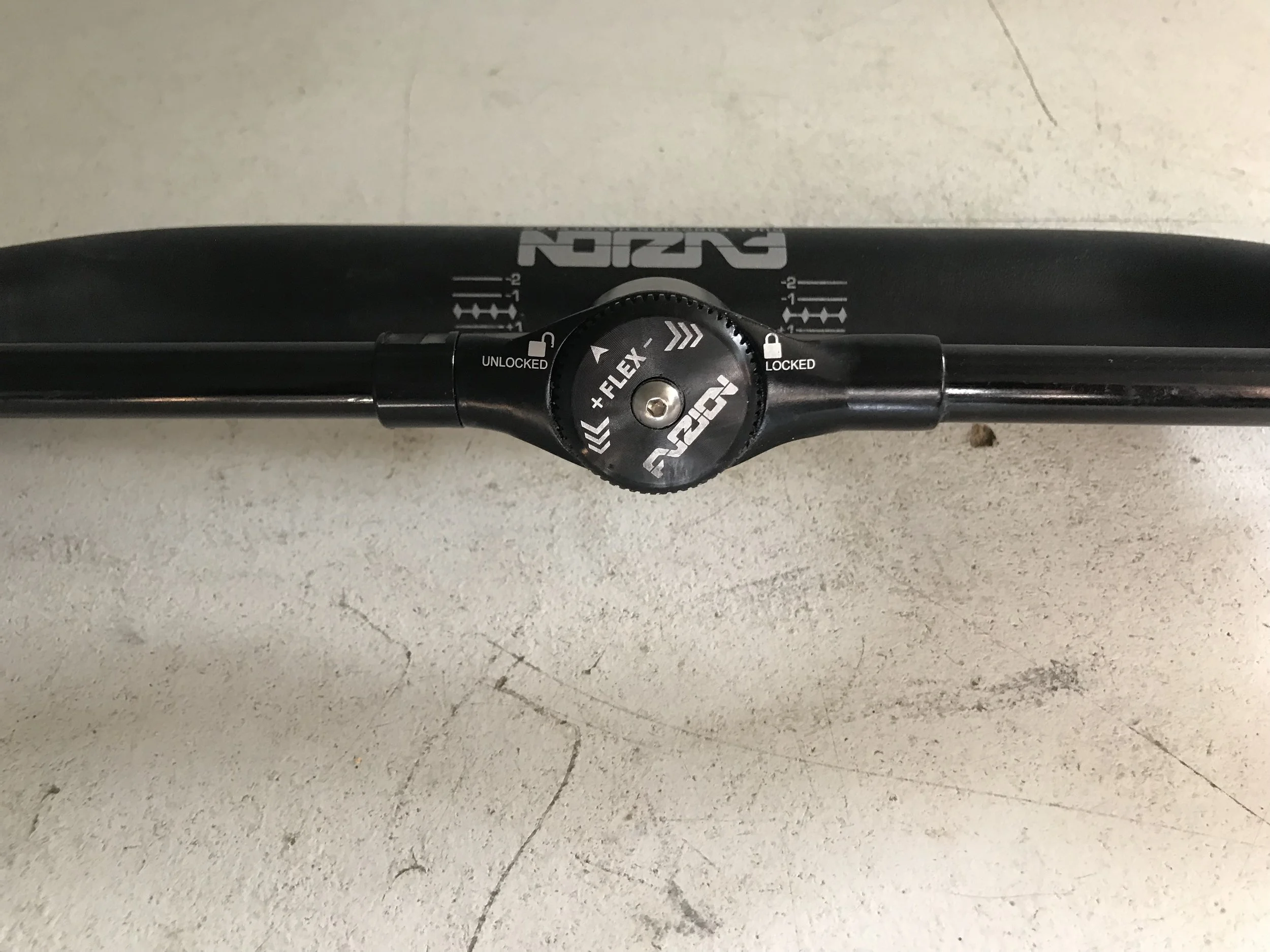

Pro Taper Fuzion Handlebar

The Pro Taper Fuzion handlebar has been around for a while now and was a totally new concept to the off-road world (for crossbar lovers) when it was released a few years ago. The flex/locking system allows riders to choose between a stiffer/more controlled handlebar feel or a softer more shock absorbing feel depending on terrain and rider preference. Changing the bar from “Locked” to “Unlocked” takes only seconds by simply removing the bar pad and turning a knob. The Fuzion utilizes Pro Taper’s exclusive aluminum alloy, 4mm wall design for lightweight, strength and comes in six different bar bends.

 Depending on what type of bike I am riding depends on if I like running a crossbar or not. For example, lately when I have been riding a KTM/Husqvarna I like to run a crossbar because it feels better through corners to me visually (I know, don't ask). When I ride a Yamaha I go to a handlebar without a crossbar. Why? You guessed it, because they come stock with that style and it feels normal to me. I usually can tell the difference in stiffness when I go back and forth between each type of bar I ride with, so this made me want to test the Fuzion technology.

 The 1-1/8 Fuzion handlebar weighs in at 1lb,15oz. and was put on several of my test bikes. The easy-to-adjust locking system can be adjusted by simply taking the bar pad off and turning the knob in the middle of the crossbar. If you’re used to running a 7/8 bar with a crossbar on your bike, but want some added strength, the Fuzion can be a great option. The downside to using a standard oversize bar with a crossbar is getting added rigidity through the bars that could be hard on the arms/wrists. Setting the Pro Taper Fuzion to the “unlock” position was most noticeable on the 2019 Honda CRF450R due to it being a more rigid feeling chassis. In stock form the Honda comes with a Renthal Fatbar handlebar and putting the Fuzion bar on gave me a less rigid through my arms. On braking bumps and hard slap down landings the Fuzion bar flexed as if I didn’t have a cross bar on. Does it flex more than an oversize crossbar-less handlebar? After spending more time on both types of bars I would say it’s very similar, but the crossbar-less handlebar still has a bit more flex to it.

 I am very picky when it comes to handlebars and I felt that the Fuzion handlebar (when in the “locked” position) is slightly more precise (than on the unlocked position) when trying to corner on hard pack slick surfaces. Also, to my surprise only a little more rigidity was felt on braking bumps and on flat landings when “locked”. The smoother the track surfaces the better the Fuzion worked in the locked position. However, 90% of the time I felt the Fuzion felt best when “unlocked”. Especially for the hacked out, choppy, desert tracks I test on.  A few tip overs and one big get off left me praising the Fuzion’s durability. This happened on the Husqvarna and the handlebar got twisted in the bar mounts, but the handlebar itself wasn’t bent.

 So at the end of the day why not just use an oversize crossbar-less handlebar you ask? The Fuzion handlebar eliminates having “crossbar lovers” cut their oversized crossbar handlebars for increased flex (and avoiding potential handlebar failure to achieve desired flex when he/she demands a crossbar). I like that ProTaper addressed the need for this niche market and cater to picky people like myself. Yes, it’s more expensive (at $129.99) than your average 7/8 handlebar, but it also will withstand a bigger crash.

Ride Engineering Billet Kill/Engine Starter Button

 By: Matt Sirevaag

Modern day dirt bikes are getting more complex with electronics, buttons, switches, and other high tech gadgets. This seems to leave less room on the bars for handguards, GPS mounts or any accessory that the consumer may want to install on the bars. I am not like Kris however, because “I love hand guards”,  so I was a little sad when there wasn’t much room on our 2019 FC350 handlebars to mount any. Since I was bummed, Kris suggested that I test out Ride Engineering’s Billet Engine Kill/Starter Button. Ride Engineering designed the button in hopes to clean up some of the clutter as well as gain a little room for anything that you may want to mount.

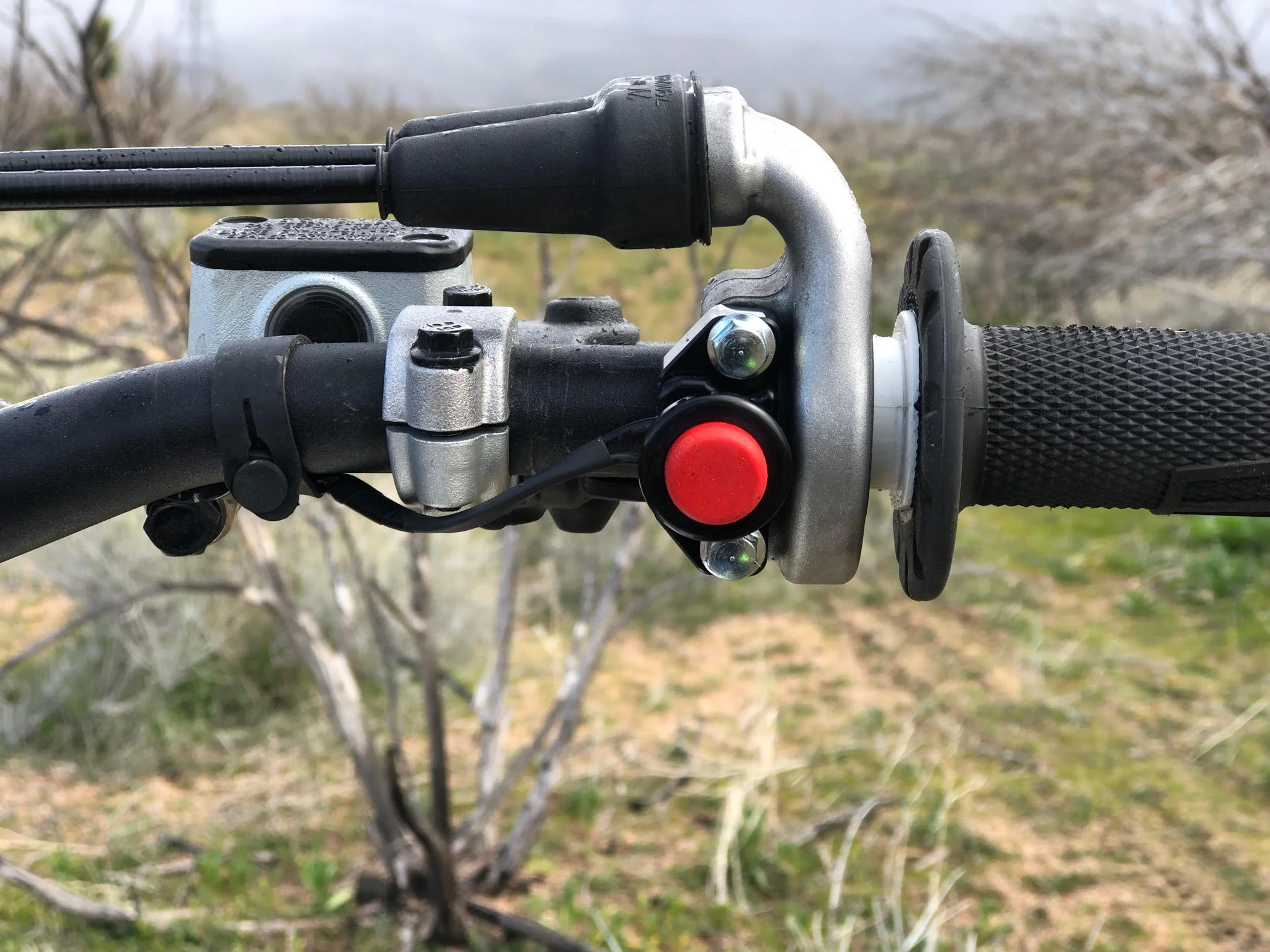

New Way…

As the heading states you can use the Ride Engineering button for a kill switch or a starter button. The new button/switch mounts on most current bikes via the clutch or brake lever mount and to me seems like a smart idea as you kill two birds with one stone. You already have real estate on your handlebars for a brake or clutch so why not mount your kill/starter button to one of those and free up some room right? However just not that installation on any Husqvarna and KTM will only allow the Ride Engineering button to be mounted to throttle tube housing. Installation is fairly easy as I unbolted the throttle tube housing on our 2019 Husqvarna FC350, used the supplied bolts (that are longer than stock), and mounted up the new switch as my starter button. There are a couple of ways to wire this switch after cutting the old one out, but I suggest soldering the wires and using shrink tubing. This will make sure you have a good corrosion and water resistant connection.

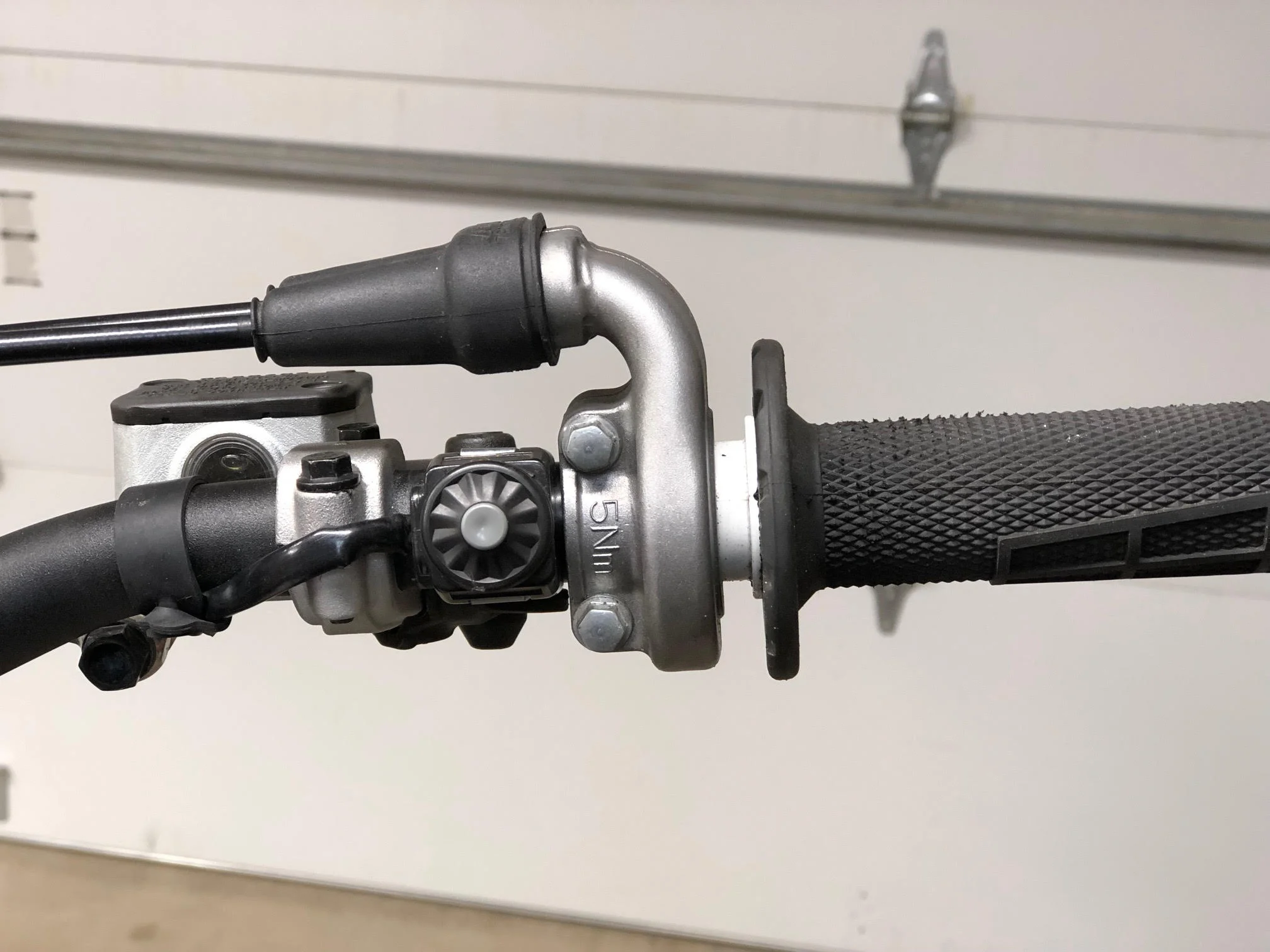

Old Way…

The Ride Engineering starter/kill button does exactly what it was designed to. It leaves you more room on the handlebars as well as give your cockpit a cleaner appearance. I have had zero issues (while riding) using the Ride Engineering button and it hasn't missed a beat, even after riding in freak Southern California rain storms (as well as with bike washes). The only squabble I had is that the button position is at the mercy of your throttle tube housing and or lever angle. I would like to have my starter button facing upwards in case I stall the bike and need to push the button in a hurry. This is nothing more than a personal preference, but something I wanted to mention. The Ride Engineering starter/kill button comes in polished aluminum or anodized black and retails for $54.95. You can find all Ride Engineering products over at ride-engineering.com.

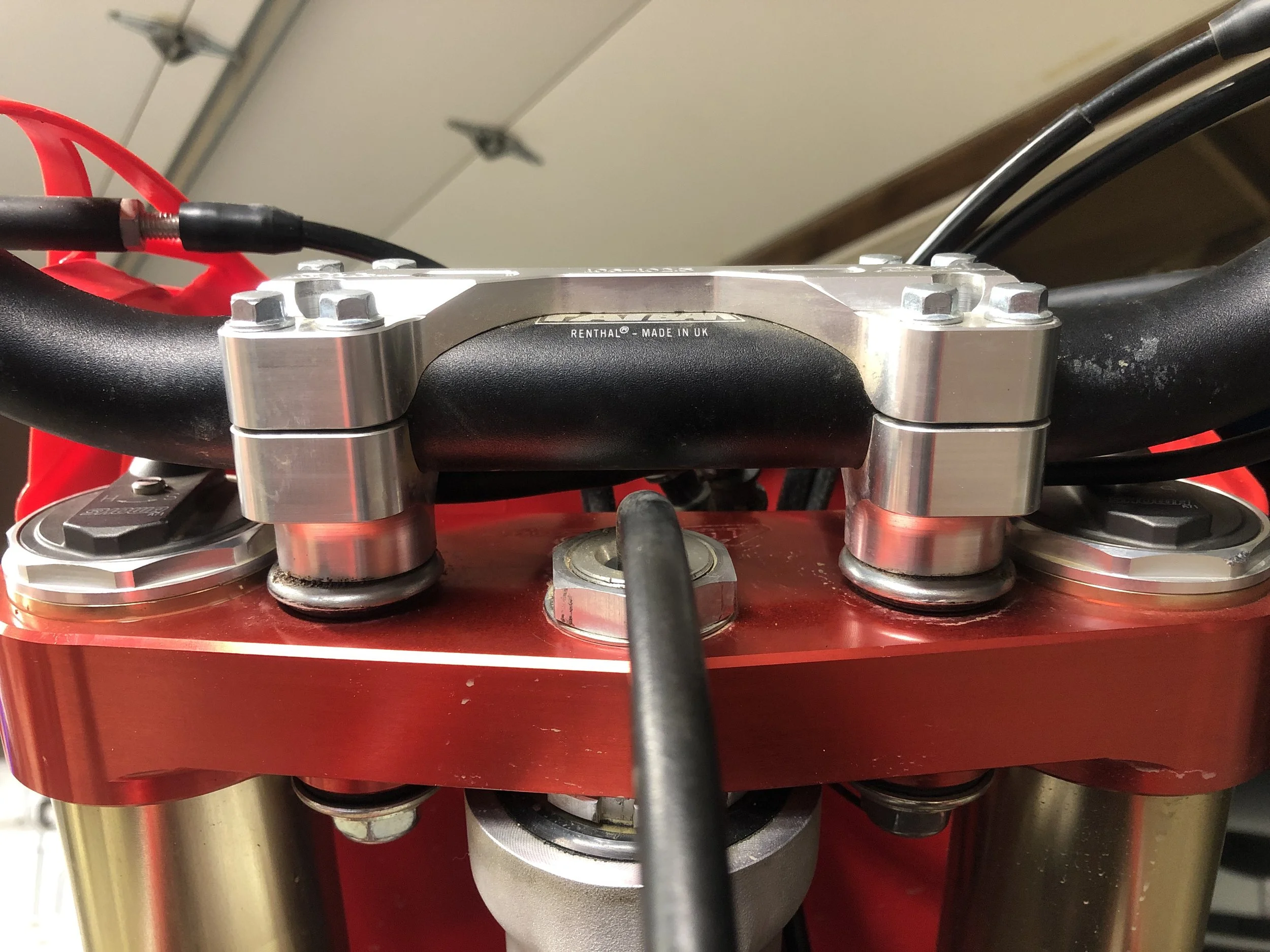

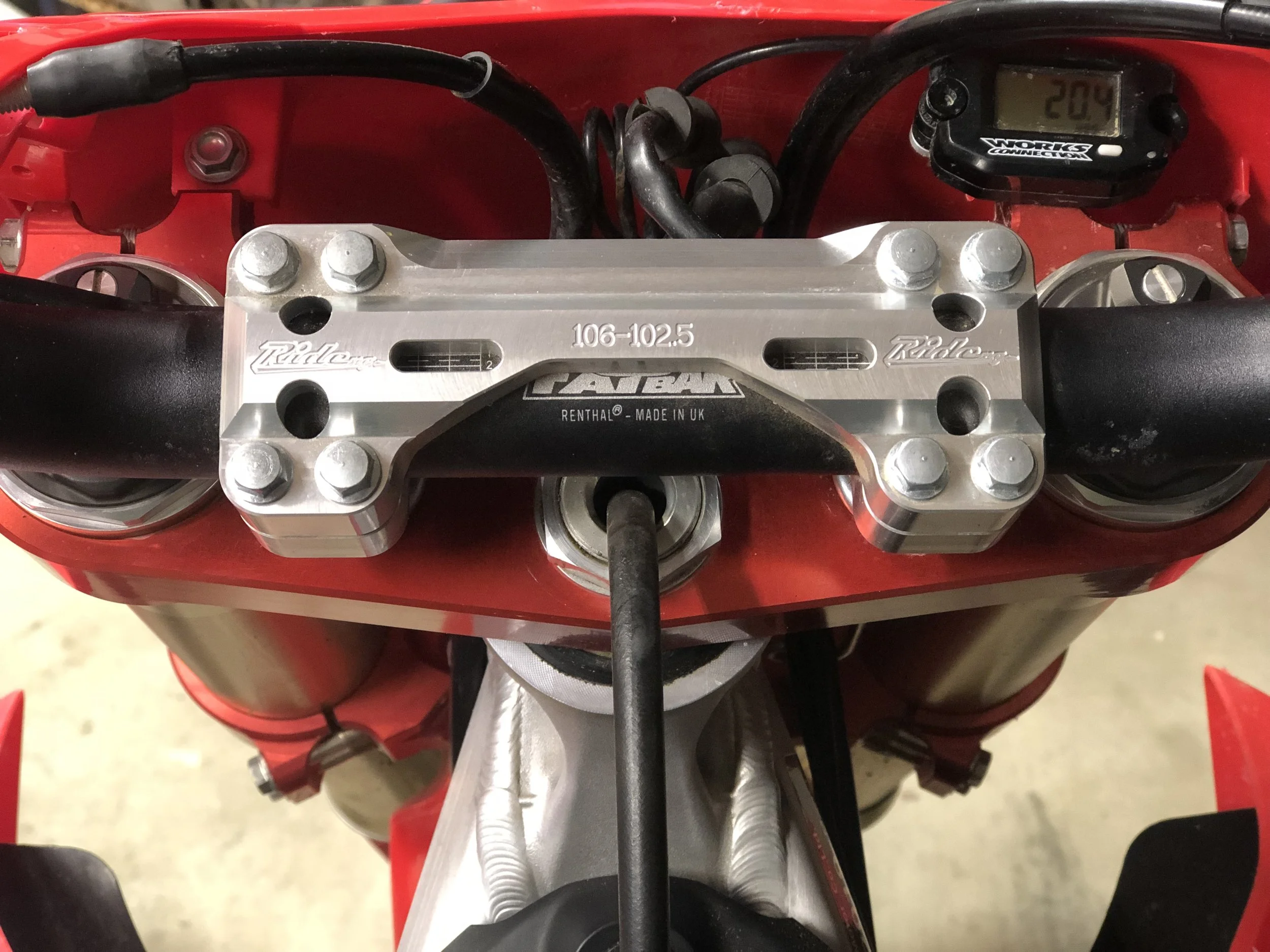

Ride Engineering One Piece Oversize Bar Mount

The Ride Engineering One Piece Oversize Bar Mount has a one-piece top that is designed to resist bending much better than the stock bar mount. Precision machined from aircraft quality aluminum, there is also a 6mm difference between the forward and back mounting positions. Ride Engineering also machines their own stainless steel posts that prevent over tightening, unlike some other competing brands that DO NOT use quality posts.

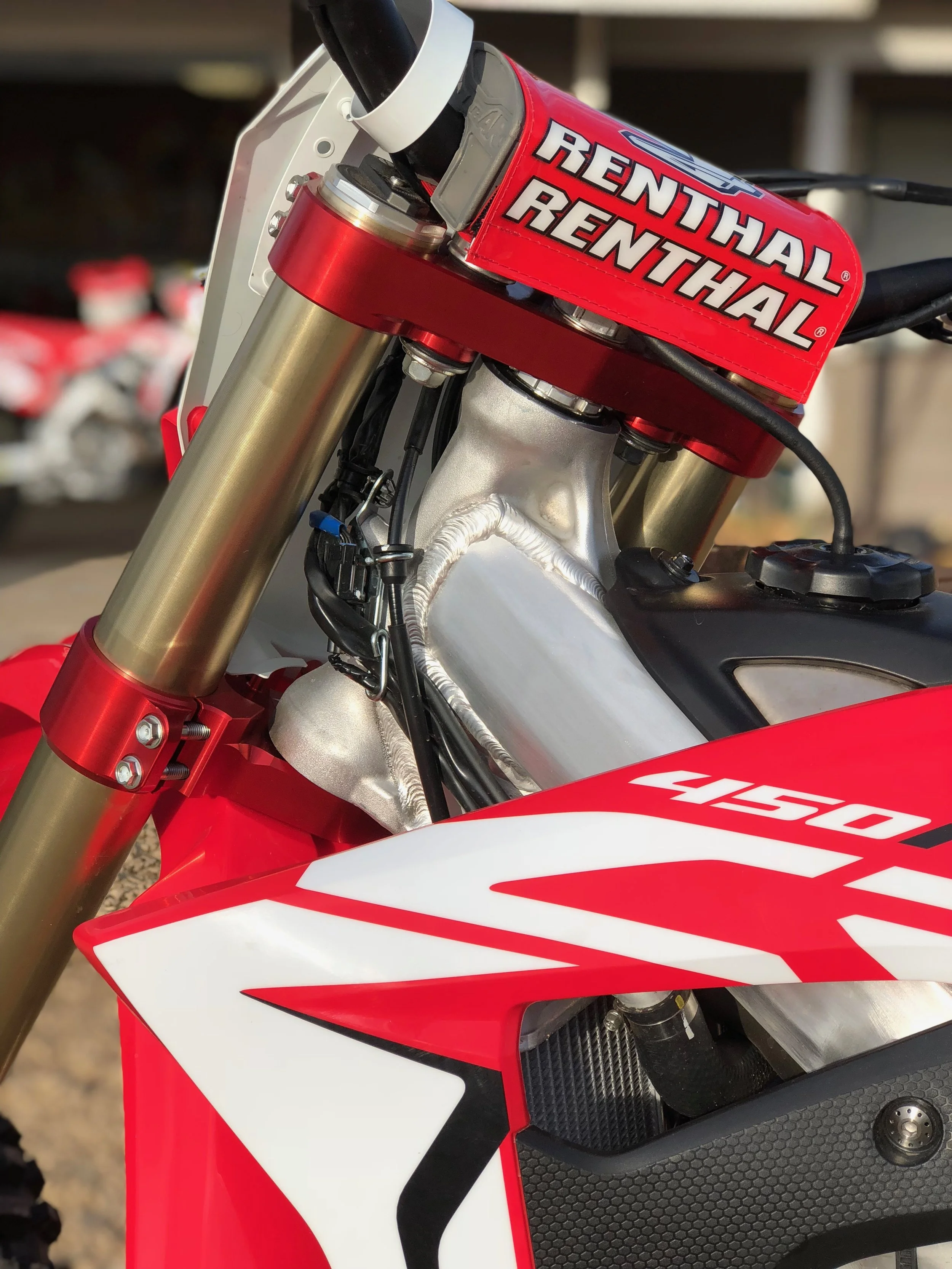

We stuck the Ride Engineering one piece bar mount on our 2019 Honda CRF450R and ran it with the stock triple clamps and Ride Engineering’s Works Edition Red Triple Clamps as well. I hate realigning bent, twisted and misaligned front ends, especially during a race. I rarely bend handlebars, but I do have some screwed up twisting going on after some wash outs/tip-overs. Usually, the standard rubber-mounted bar mounts get tweaked and I've even bent the bar-mount stem a time or two while the handlebar somehow stays straight. One of the best products I've found to keep me pointing in the right direction is the Ride Engineering One Piece Bar Mount, in which I tested on our 2019 CRF450R. This $104.95 all aluminum bar mount is sturdy enough to take some crashes, but doesn't cause any added rigidity problems. I would know because I am super sensitive to any added rigidity in my front end. The flex I got on the track (from the Ride mount) is as good as the stock flex and Ride Engineering’s rubber cones are also as flexible as stock. Ride does offer a variation of different elastomers/rubber cone compounds for a custom desired flex, just in case you need a stiffer or softer feel. The Ride Engineering Fourth Generation One Piece Mount has been refined over the years to weigh as little as possible, yet stay strong. The final product is a little heavier than stock, but for the added strength that I am getting, it’s worth its “weight” in gold.

Installation is simple as the Ride Engineering One Piece Mount easily goes on with the stock Honda rubber cones or you can choose to get Ride’s rubbers (like I mentioned above) as well. The top mount is a one piece design held on with eight 8mm head bolts and when placed over a Pro Taper EVO bar, the machined guidance holes (in the mount) lined up perfectly, making it easy for me to set my bar at the right angle. Once tightened up, I forgot about this mount and didn't stress on the average tip over or any normal sized spill I may take. So, if you're like me and your bike hits the ground on occasion, this mount is money well spent. Head over to ride-engineering.com to check them out or get yours. If you do decide you need this piece, use the code Keefer-20 to see some dough.

Keefer's Handlebar Dimension Recommendations

When it comes to handlebars I am a very picky person. The height, width, rise, and position is very important to me. I find that you can’t run the same handlebar bend on every bike, even though I like a bend on one bike, sometimes it doesn’t feel as good on another. Every bike has a different rider triangle so you must adapt to different bar bends as you change motorcycles. As the years progress, dirt bikes evolve and so do their dimensions. As you may have heard in my “Handlebar 101” podcast (show #70), if the bar feels too low (height), you should try to get the bar height from your bar mount and not the handlebar itself. Getting the height from your bar mount allows you to keep proper technique (position) through corners (where most of the time is made up on a track). I wanted to break down some of my favorite bar bends right here (for each new motocross machine) and give you a recommendation on bar mount height for different sized riders.

As you will notice most of these handlebars on this list are Pro Taper and Renthal. This doesn’t mean that I am trying to sell you these handlebar brands. This is just what I personally like myself and should be taken as such. If you like another bar brand, that is fine, simply look at the dimension of the preferred handlebar and try to mimic that dimension to your favorite handlebar company. There are tons of handlebar companies out there, but for me, Renthal and Pro Taper are the bars that I prefer. For testing purposes, I tried a wide range of handlebars in my shootout so go give that podcast a listen when you can (Show #70). There are some great options out there. Again….This doesn’t mean other handlebars are crap. For transparency reasons, I am letting you know that these are the companies I prefer. I receive ZERO dollars from Renthal or Pro Taper.

• We are using 2019 models for reference, but if you have an older model and are concerned on which handlebar to run please feel free to email me at kris@keeferinctesting.com.

• All Dimensions are in (MM).

2019 Honda CRF 450R/250R:

Notes: The stock bar bend on the 2019 Honda CRF 450R/250R has finally been updated to a bend that is lower and flatter than previous years. This bend is actually quite good and we usually leave the stock Renthal handlebar on the Honda. If you think you would like more flex you can try the optional bar bend below.

Preferred:

Stock Renthal 839 FatBar (W)802 (H)91 (R)52 (S)51

Optional:

Pro Taper EVO SX Race (W)800 (H)87 (R)54.5 (S)54

Bar Mount Height: Stock

2019 Yamaha YZ450F/250F:

Notes: Yamaha also did a good job on creating a bar that is fairly neutral for different sized riders. It’s lower height seems to fit a wide variety of riders (5’8-6’2), but taller riders may want to put bar mount in forward hole/back position.

Preferred:

Pro Taper EVO SX Race (W)800 (H)87 (R)54.5 (S)54

Optional:

Renthal Fatbar 602 bend (W)801 (H)89 (R)59 (S)56

Bar Mount Height: Stock

2019 Kawasaki KX450/250:

Notes: 7/8 lives on! Kawasaki managed to keep the good ol’ 971 Renthal 7/8 bars, which are pretty damn good! I like a 7/8 bar and I actually stick with the 7/8 theme if I can. The 7/8 bar does bend a little easier, but you get a lot of flex when the track gets rough. If you’re an aggressive rider who likes a little more positive steering than go to a 1-1/8 handlebar for increased stiffness.

Preferred: Renthal 7/8 983 bend (Villopoto/Stewart) (W)808 (H)95 (R)58 (S)55

Oversize Option: Pro Taper Fuzion Henry/Reed (W)800 (H)92 (R)66 (R)40 (S)55

Bar Mount Height: Stock

2019 Suzuki RM-Z450/250:

Notes: The stock Suzuki bend has some sweep to it, which makes the bike feel small at times. I prefer to open the cockpit up a little.

Preferred: Pro Taper EVO SX Race bend (W)800 (H)87 (R)54.5 (S)54

Optional: ODI Podium Flight CountryBoy bend (W)803 (H)92 (R)56 (S)57

Bar Mount Height: Stock

2019 Husqvarna FC450/250:

Notes: Husqvarna comes with a very low bend and that fits the ergos of this bike, but the width of the bar is too long. I actually like the stock handlebar bend on the Husqvarna, however I cut the handlebar down to 803mm, which really helps the character of the Husqvarna when leaning into corners.

Preferred: Stock Pro Taper EVO handlebar cut to 803mm (W)811 (H)80 (R)39.5 (S)51

Optional: Pro Taper EVO Carmichael bend (W)800 (H)77 (R)40 (S)55

Bar Mount Height: Plus 5mm

2019 KTM 450SX-F/250SX-F:

Notes: The stock bar bend shape on the orange brigade is also decent, but it is too stiff and long. If you don’t think it is too stiff, you can simply cut the bar to 803mm and run it!

Preferred: Renthal 821 bend cut to 803mm (W)813 (H)78 (R)42 (S)54

Optional: Pro Taper EVO Husqvarna Stock cut to 803mm (W) 811 (H)77 (R)40 (S)55

Bar Mount Height: Plus 5mm

Pro Taper Fuzion Handlebars

The Pro Taper Fuzion handlebar has been around for a while now and was a totally new concept to the off-road world (for crossbar lovers) when it was released a few years ago. The flex locking system allows riders to choose between a stiffer, more controlled handlebar feel or a softer more shock absorbing feel depending on terrain and rider preference. Changing the bar from “Locked” to “Unlocked” takes only seconds by simply turning a knob. The Fuzion utilizes Pro Taper’s exclusive aluminum alloy, 4mm wall design for lightweight, strength and comes in six different bar bends.

Depending on what type of bike I am riding depends on if I like running a crossbar type handlebar or not. For example when I am riding a Honda I like to have a crossbar because they come standard with one. When I ride a Yamaha I go to a handlebar without a crossbar. Why? You guessed it, because they come stock with that style. I usually can tell the difference in stiffness when I go back and forth between each type of bar so this made me want to really test this Fuzion bar.

The 1-1/8 Fuzion handlebar weighs in at 1lb, 15oz. and was put on several of my test bikes. The easy-to-adjust locking system can be adjusted by simply taking the bar pad off and turning the knob in the middle of the crossbar. If you’re used to running a 7/8 bar with a crossbar on your bike, but want some added strength, the Fuzion is a great option. The downside to using a standard oversize bar with a crossbar is getting added rigidity through the bars that could be hard on the arms/wrists. Setting the Pro Taper Fuzion to the “unlock” position was most noticeable on the 2018 Honda CRF450R due to it being a more rigid feeling chassis. In stock form the Honda comes with a 7/8 handlebar and putting the Fuzion bar on gave me only minimal gains in stiffness through my arms. On braking bumps and hard slap down landings the bar flexed as if I didn’t have a cross bar on. Does it flex more than an oversize crossbar-less handlebar? After spending more time on both types of bars I would say it is very close.

I am very picky when it comes to handlebars and I felt that the Fuzion handlebar (when in the “locked” position) is slightly more precise (than on the unlocked position) when trying to corner on hard pack slick surfaces. Also, only a little more rigidity was felt on braking bumps and on flat landings when “locked”. The smoother the track surfaces the better the Fuzion worked in the locked position. However, 90% of the time I felt the Fuzion felt best when “unlocked”. Especially for the hacked out, choppy, desert tracks I test on.  A few tip overs and one big get off left me praising the Fuzion’s durability. This happened on the CRF450R and the handlebar got twisted in the bar mounts, but the handlebar itself wasn’t bent.

So at the end of the day why not just use an oversize non-crossbar handlebar you ask? The Fuzion handlebar eliminates having “crossbar lovers” cut his/her oversized crossbar handlebars (and avoiding potential handlebar failure to achieve desired flex when he/she demands a crossbar). I like that ProTaper addressed the need for this niche and picky people like myself. Especially for riders that need to see a crossbar yet have flex when he or she rides. Yes, it is more expensive than your average 7/8 handlebar, but it also will last longer in case you are a crasher like these dudes on MX Fails.
