Pro Circuit T-6 Stainless System (2022 Kawasaki KX250)

The muffler on the stock 2022 KX250 sounds a little too blown out for me in stock form (even when new). The tone of the muffler is not pleasant to the ear, so I crossed my fingers, called Pro Circuit and picked up a T-6 (stainless system) Muffler System to see if it enhances the current engine character of the KX250. Ti-6 and Ti-6 Pro systems are tough to get at the moment so we settled on a stainless system, which can last longer (more durable) than a titanium system. While I had a PC system, I thought it would be cool to give you guys a run down on a couple other mufflers that I have tried on the KX250 and compare those with the PC (see below). Here’s what I came away with…

Immediately I weighed the stock and PC T-6 mufflers and took notice of how the Pro Circuit system cut just over 0.7 pounds off the green machine so we were starting off well. The next thing that made me happy was that the PC muffler goes on easy and literally took me 7 minutes to change out! Boom! So far so good! After installation I recruited my son to help me evaluate the system as he now has a new found love for the KX250 and a Team Green ride that didn’t exist last year. I made him write his notes down and I told him we would compare both of ours after we have tested this muffler at a few different tracks. We tested the T-6 at Glen Helen, Perris, secret dez tracks and State Fair MX just so we knew exactly what we were getting out of the PC system.

 When you purchase your T-6 muffler it will come with a spark arrester screen already installed inside the muffler. DO NOT REMOVE THIS! This helps with back pressure and gives the KX250 the RPM response and bottom end that Aden (my son) and I both like. When we took it out the PC system lost some excitement down low and lost a little bottom end. You can however punch a small hole through the back of the screen and then reinstall it. Doing this actually helps give the PC system a little more bottom end/RPM response while still retaining that back pressure that is important for rear wheel connection.

Ok so now that we got the “tricks” out of the way, how does this PC system compare to stock?. Normally I DO NOT get more bottom end with a PC system (versus stock) on any brand of bike, but I was surprised that I got a little extra bottom end pulling power out of the PC system. RPM response is a little softer than the stock system, but when opening up the throttle out of corners the KX250 (with the PC system) pulls harder than the stocker. Mid range is where you will feel the meat of this power. When accelerating out of the corner and shifting to third, the KX250 doesn't have that “empty” feeling that the stock muffler has at times when the track is tilled deep. The PC system keeps pulling once the KX250 is shifted into third gear and continues to pull harder into the top end. Over-rev is as good as stock and I didn’t notice any loss of over-rev when swapping the two mufflers back and forth.

 The only real negative I have found from the PC system is I wish it would have a little more low end RPM response, like the stock system. The stock muffler has such great initial touch of throttle which can make the bike feel a little lighter when hopping over bumps or popping out of blown out berms. The PC system pulls better out of corners, but is just a smoother initial touch (AKA, low end RPM response). If you want more low end RPM response and could stand to lose some pulling power then take the screen out of the T-6. Doing this will give you more low end RPM response, but will hurt some mid range and it will not sound as good in my opinion.

Overall Aden and I are pleased with the PC system for the 2021 KX250 and I guess we shouldn’t be surprised as they do have that Kawasaki race team and all. My son surprisingly felt most of the pulling power, but didn’t feel much increase anywhere else, so not bad for a 14 year old squirrel. Hey, Mitch! If you’re reading this, good job! Chanceability that he reads this? ZERO. POINT. ZERO!

Extra Credit: We tried a HGS and FMF system just to see what we had in the Pro Circuit T-6 Muffler System.

HGS: The HGS has a bottom end feel similar to the Pro Circuit system but not as good as a mid range pull. The HGS system has more top end than the PC and FMF system, but it takes a little work to get there. If I was riding a sand track, I could see how someone could like this system. Great top end-over-rev.

FMF: The FMF has more bottom end than the PC system and has slightly less mid range than the PC, yet more the than the HGS. Top End is short and over-rev has slightly less. than stock.

How To Save Your Subframe On Your 2019-2021 Kawasaki KX450

By: Matt Sirevaag (AKA Vaaaaaaag)

You just took ownership of a new KX450 and you want to change the engine characteristic with a new exhaust. However when listening to Keefer rant on the Pulp MX Show about A-Ray giving away mufflers like he’s Oprah on a Christmas special has you hesitant. You may wonder why the aftermarket exhaust industry didn’t just do as Kawasaki did from the factory and use a rubber grommet to help with vibration and help yield breaking sub frames. Well for whatever reason most exhaust companies mufflers are solid mounted so sometimes consumers are breaking the tabs off the subframes thus mufflers are being laid all over local tracks like toys left on the floor by a three year old.

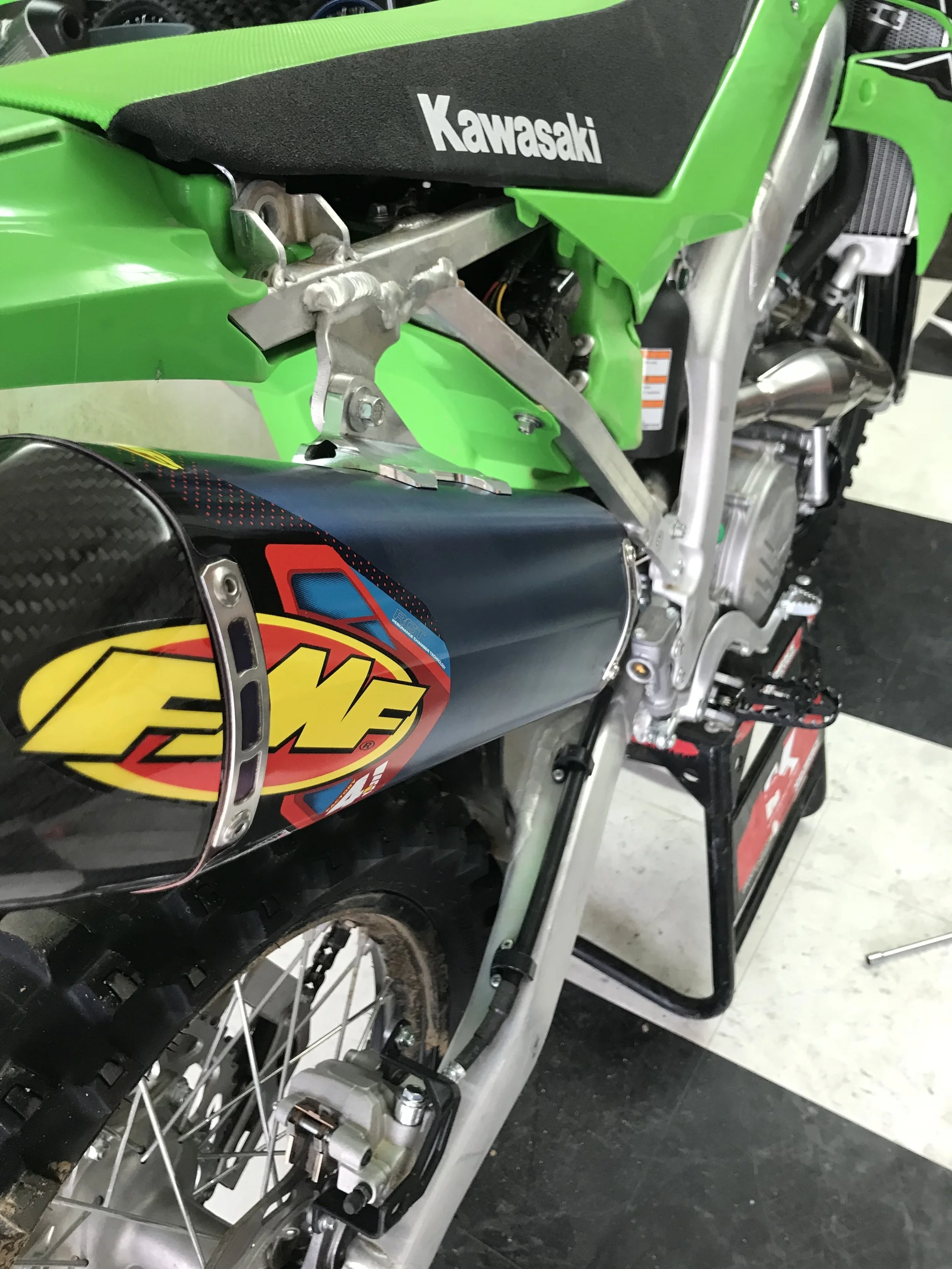

After breaking  our muffler bracket on our KX450 test bike, we decided to take the stock rubber and mounting hardware to install the new aftermarket FMF exhaust. This is a simple mod that even the most novice mechanic can do at home. Take your aftermarket muffler and stick it in a soft vise or have your wife hold your muffler. Drill/hog out the existing mounting hole with 5/8 drill bit or step bit. Next, install the rubber grommet and hardware from your stock exhaust into your new muffler. Boom! Now you have aftermarket exhaust mounted the way Kawasaki intended it to be. You will get a small amount of float out of the rear section of the muffler, but we have not noticed any unnecessary vibration or slop when riding.

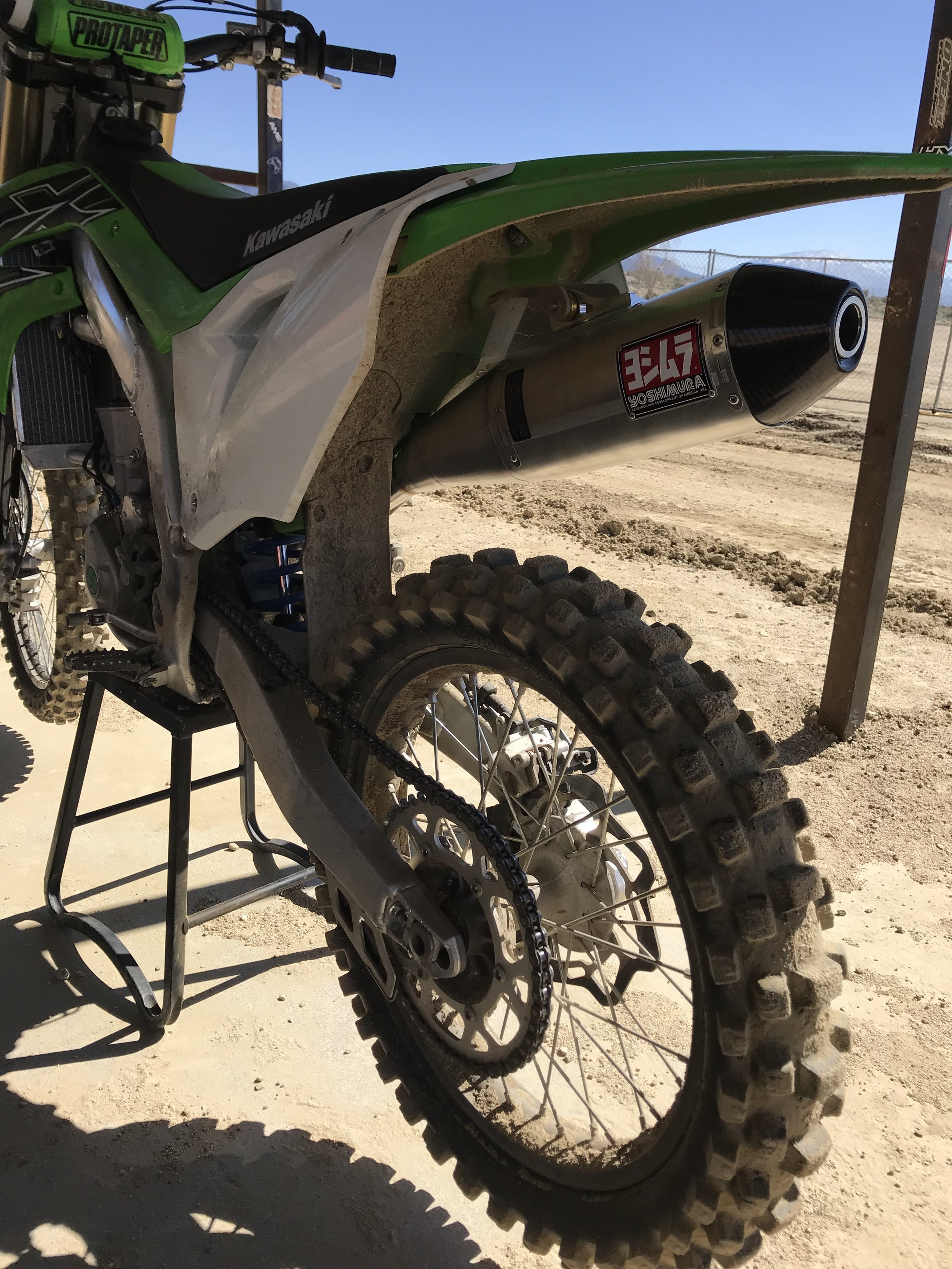

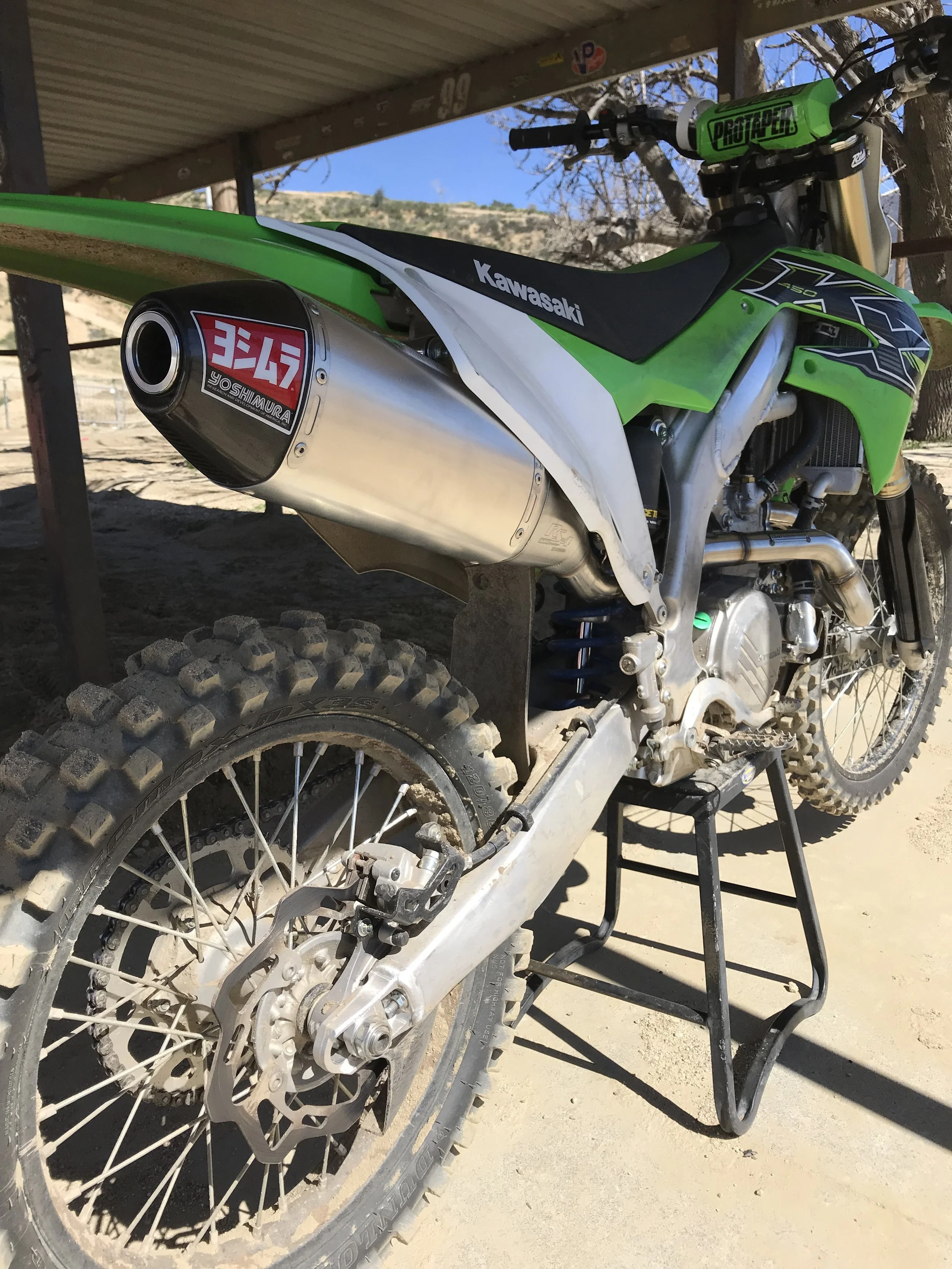

Yoshimura RS-4 SS/AL Full Muffler System For 2019 Kawasaki KX450

By: Dominic Cimino

Any of you that stay up to date with us here at Keefer Inc. are aware that I really enjoy riding the 2019 KX450. Like I really enjoy it. Maybe it is because we have the chassis and suspension dialed in just for me or maybe it’s just because the bike is so damn fun. Either way, I am excited to continue making improvements to this bike in the upcoming months because every time I ride it I feel faster. Next on the chopping block is the motor department and we decided to start with exhaust first. I wanted to test the RS-4 Stainless Steel Yoshimura system because I have had great luck in the past using their systems on other bikes and the guys over there always take great care of us.

Yoshimura exhaust systems are made from scratch right here in Southern California. Their R&D facility houses everything from the race team shop, dyno/engine rooms, to the space where they lay all of their own carbon fiber. The attention to detail and quality of product is top notch in everything they produce and to give you a little more background on Yosh, you can watch this short clip:

https://www.youtube.com/watch?v=V5J5kltNfvQ

Although it is a couple years old and mainly showcases road racing disciplines, trust me when I say that it all translates equally into motocross. You can sleep peacefully knowing that your investment is going to be worth it.

The stock exhaust system on the 2019 KX450 is not too bad overall. Beside it looking really bad (that is a no-contest) and weighing a decent amount, it produces a good tone and useable power. I think this exhaust compliments the motor and power delivery well by keeping things linear and quick revving - one of my favorite traits about this bike overall. But on the flip side, the motor does lack some “meat” in the RPM range and the over-rev tends to sign off relatively quickly at the top. Installation of the new Yosh was quick and easy with every single piece fitting in place perfectly. I love when that happens! The stainless/aluminum system that I tested weighed over a pound less than the stocker and comes in at a fair price of $675.78. In roughly ten minutes, the KX looked better instantly with the new system in place, and when I pushed the button to wake her up, she sounded healthier too. I am not a fan of obnoxiously loud exhaust systems so I was happy to listen to the Yosh when cracking the throttle on the stand. Definitely louder than stock, but not deafening.

Before installing the new Yoshimura system, I did a couple morning motos at Glen Helen to get the best gauge of the stock comparison. The most obvious difference when cruising back onto the track was the tone, as it has a deeper/healthier sound. But when in stride, the exhaust made the KX come to life from the mid range and beyond. The linear power curve stayed true on delivery, but exemplified a more crisp powerful feel when on throttle. I felt the Yoshimura system was able to harness a little more “meat” that I have been searching for and also helped push the bike into the higher revs more efficiently. On the top end, over-rev was increased quite a bit as the KX seemed to pull longer and harder overall. I noticed when charging down Mt. Saint Helen I could hold 2nd gear almost half way down the hill before hitting the limiter. The stock exhaust would sign off way earlier than that in the beginning part of the day. I also realized I stayed in 2nd gear almost all the way around the Glen Helen circuit. This is a testament to the linear power I have been talking about on this 2019 KX450, and the Yoshimura system makes it even better. Where I didn’t notice a substantial improvement was bottom end power delivery. The KX is not a torquey bike in stock trim by any means, but I was expecting to get a little more bark with the new system. This was not the case and I found myself clutching the bike in the soft corners to wake it up in order to get back into the mid range, where I think it excels.

Overall, the new Yoshimura exhaust system is a great performance improvement to this already great bike. Looks good, sounds good, and runs good - thats what it’s all about, right? Obviously, I am going to set my sights on continuing to improve the power delivery to round out this new KX450. I am happy with the mid/top end feel, so maybe we can experiment with new map settings to get a little more lovin’ down low.  As always, stay tuned for what is next here at Keefer Inc. If you have any questions about the 2019 KX450 please feel free to email me at dominic@keeferinctesting.com.  Or you can head over to Yoshimura-rd.com to see what they offer for your green machine.

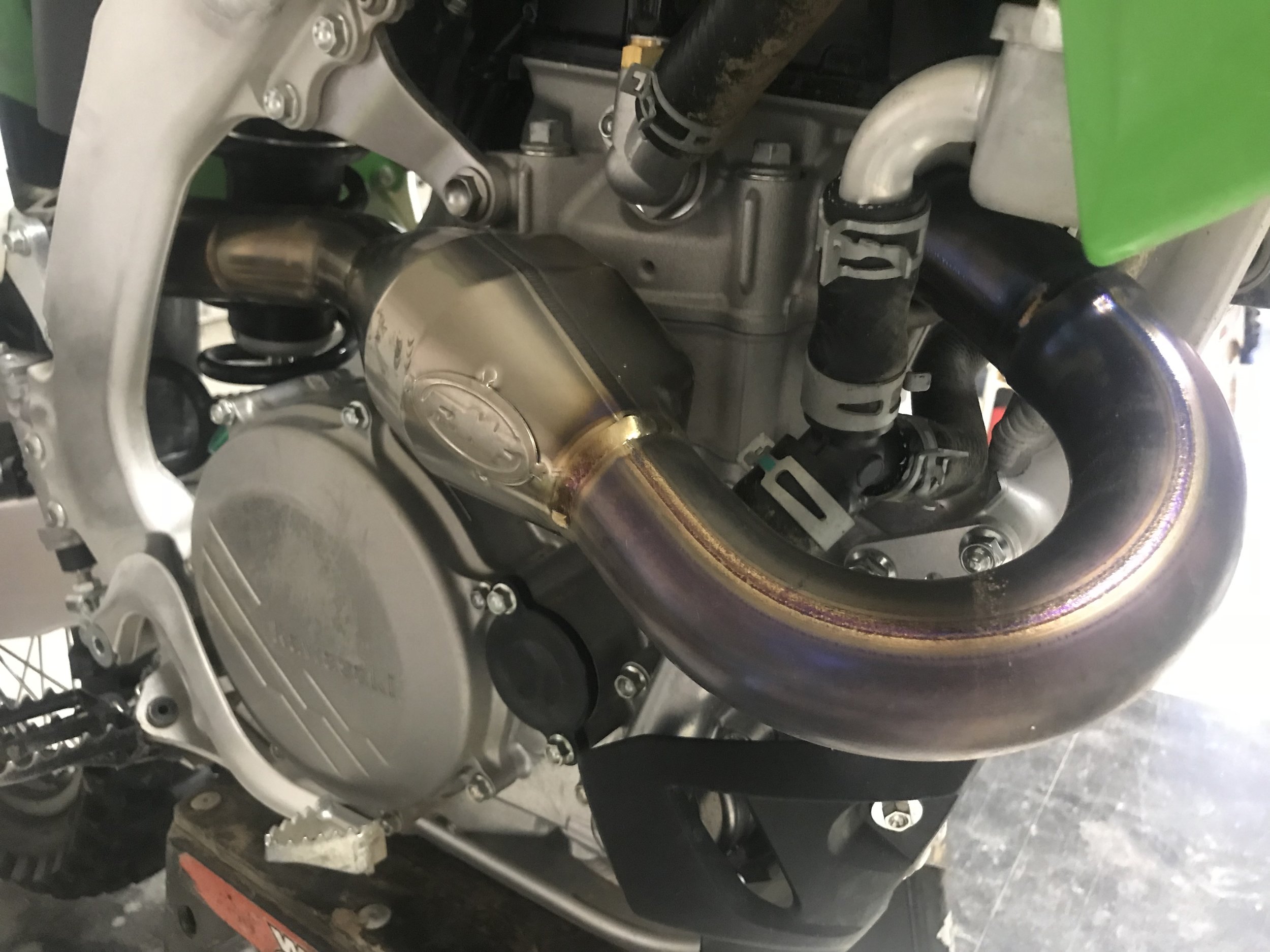

FMF 4.1 RCT Titanium Muffler System (2019 Kawasaki KX450)

The 2019 Kawasaki KX450 is the most improved machine of the new year, hands down! It has a very responsive engine character, comfortable suspension, a lightweight feel and cornering that is very neutral. I will be the first one to admit that I get nervous about sticking on any type of aftermarket muffler system when I really like the stock power curve of any machine. Sometimes aftermarket mufflers are just smoke and mirrors. They are lighter, titanium, look cool, but in the end they are no better than your heavy, ugly, big stock muffler. While I was testing the 2019 KX 450 earlier this year I could hear this little voice inside my head say “it’s going to be tough to make a muffler that is better than this stock one”. Fast forward to a few weeks ago and a shiny new FMF 4.1 RCT titanium exhaust shows up at my door, to be evaluated on the green machine. I sat on it for a week knowing that this new, shiny, lightweight piece of FMF artwork might not be better than the current monstrosity that is on the 2019 KX450. Nonetheless I installed the FMF system (which was easy I may add) and headed to the track to give it a go.

The stock power curve of the 2019 KX450 engine has a snappy throttle response (with a free feel to it) and at times can almost be too much through corners with the standard green coupler installed. Once rolling on the throttle and passed the corner, the power is not quite as strong as the Honda or Yamaha, but still creates a easy to ride power feel on the track. I didn't necessarily need more rpm response with the 2019 KX450, but I wouldn’t mind some more meat through the mid to top end range. Bolting on the KX450 FMF Factory 4.1 RCT system is by far the easiest system I have installed on any 2019 machine. Installation literally took me through two full songs on the “Classic Rock” station on Pandora. Not bad! The 2019 Kawasaki is a light bike stock, but FMF sent me the full titanium system, which dropped the Kawasaki’s weight by 2.9 pounds from the stock system! To me the titanium FMF 4.1 system is one of the most stunning aftermarket mufflers you can put on any bike. I love the blue anodized finish as it looks good on almost every make and model machine there is.

FMF builds great looking mufflers!

On the track the FMF 4.1 makes a slightly smoother bottom end power delivery, but keeps that exciting RPM response. Where most of you will feel your hard earned money is in the mid range pulling power when exiting corners. The stock system feels empty in this area, but the FMF fills in the power through the mid-range. What I mean by “fill in the power” is that the FMF system actually feels like it is shooting forward, as soon as you shift into third gear, unlike the stock Kawasaki’s power where it lacks some “meat” through the mid-range. The FMF 4.1 increases that mid range area and gives the rider some more freedom to be lazier in third gear. That is great news for all you vet riders out there, trust me! Top end is also increased slightly and you get increased pulling power near the end of each straight with the FMF. Over-rev is slightly increased as well with the 4.1 (over the stock muffler) as I could leave the KX450 in second and third gear slightly longer. The one downside to me is that it is loud sounding (compared to the stock system). It has more of a deeper/throatier pitch to it, which makes it sound louder than the stocker.

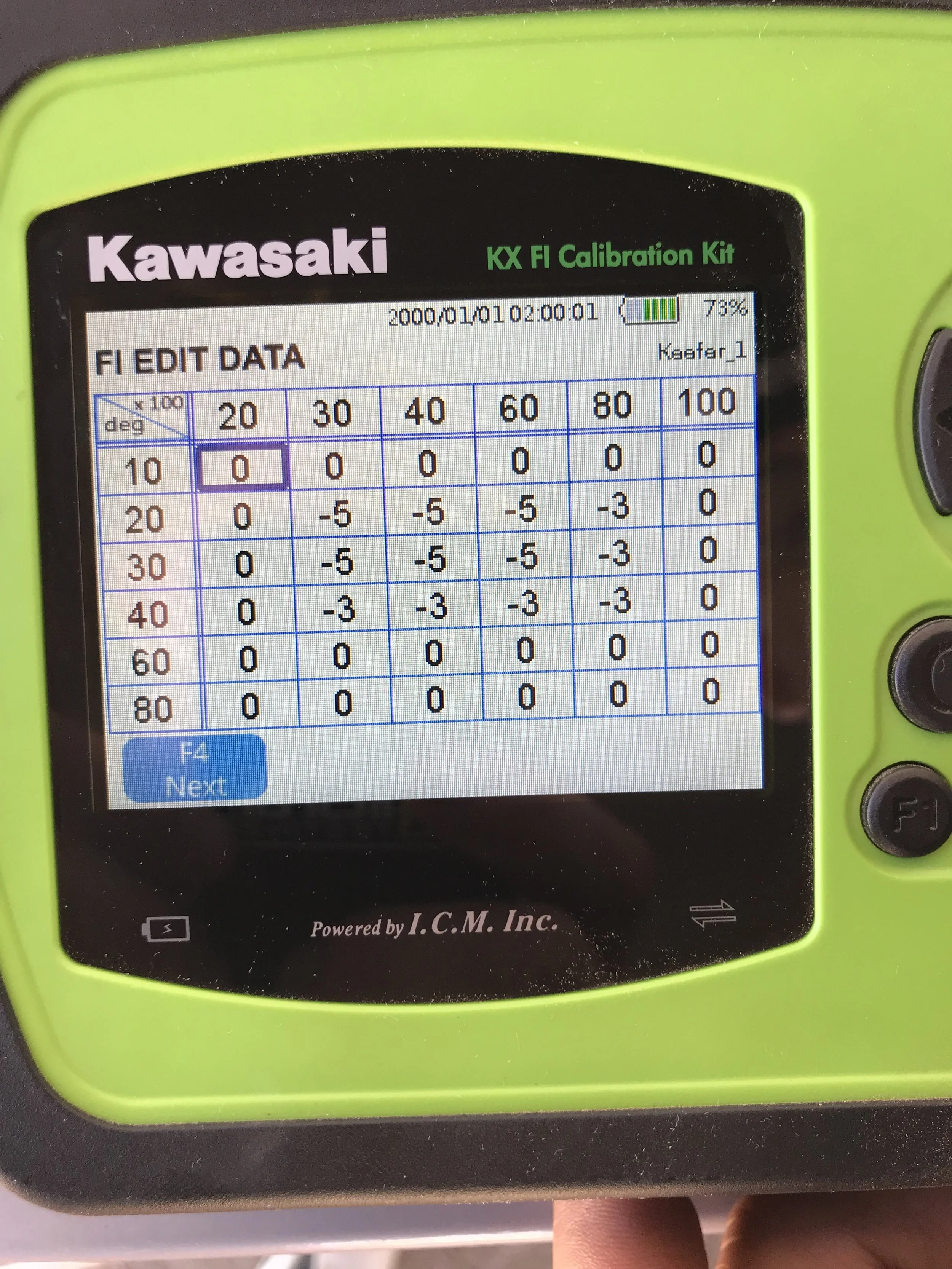

I tested couplers along with mapping with the Kawasaki R&D guys and came up with a couple options for you (see attached maps). The white coupler map is better for bottom-mid range power, but the black coupler map is slightly better from mid to top end (the black coupler map is what I am running now). The good news is, unlike last year, the 2019 KX450 FMF 4.1 system will not have that de-cel popping with either coupler (along with these installed maps), which is a huge plus when it comes to a clean ignition/fuel mapping power feel.

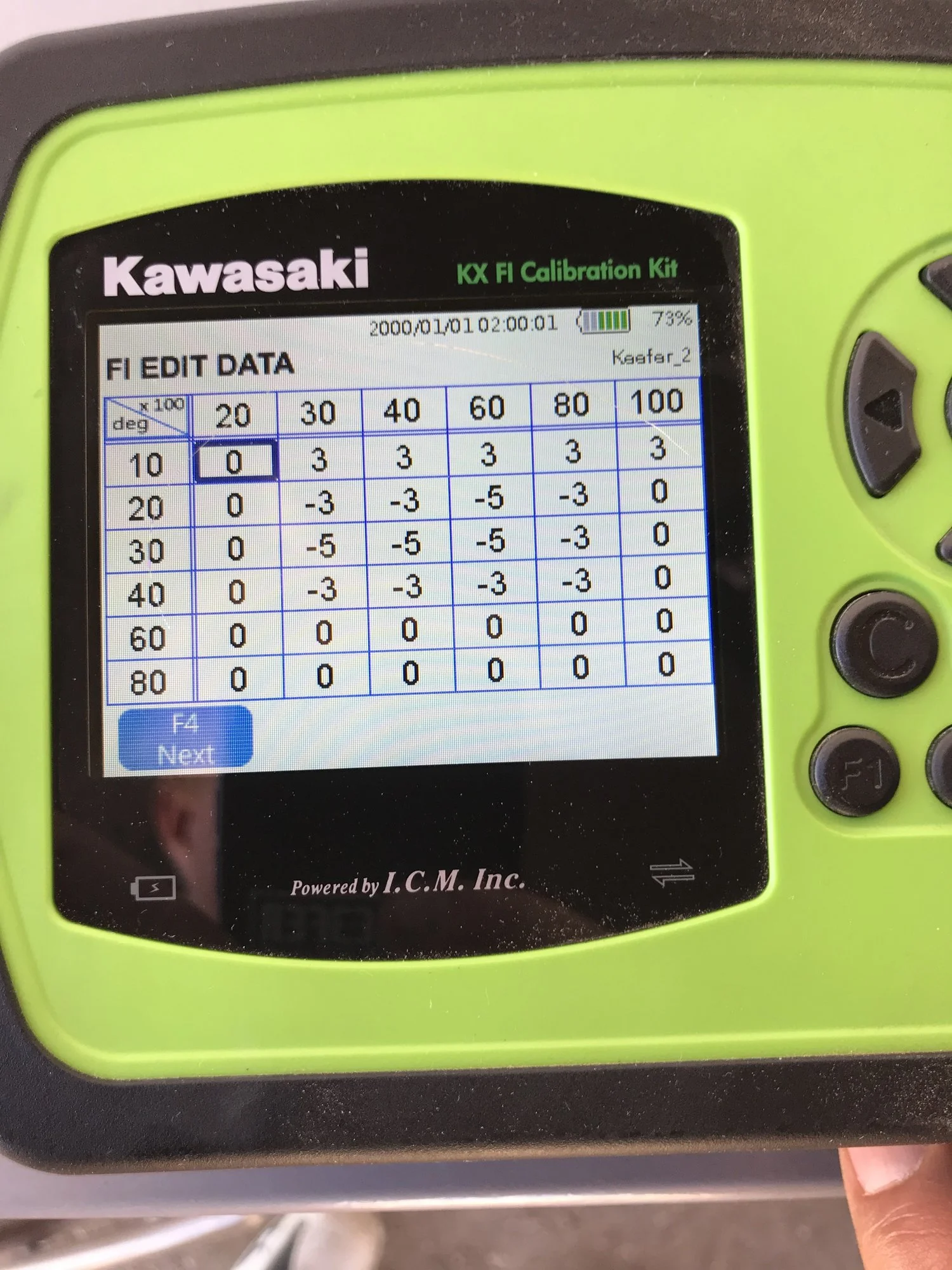

Black Coupler Fuel Map

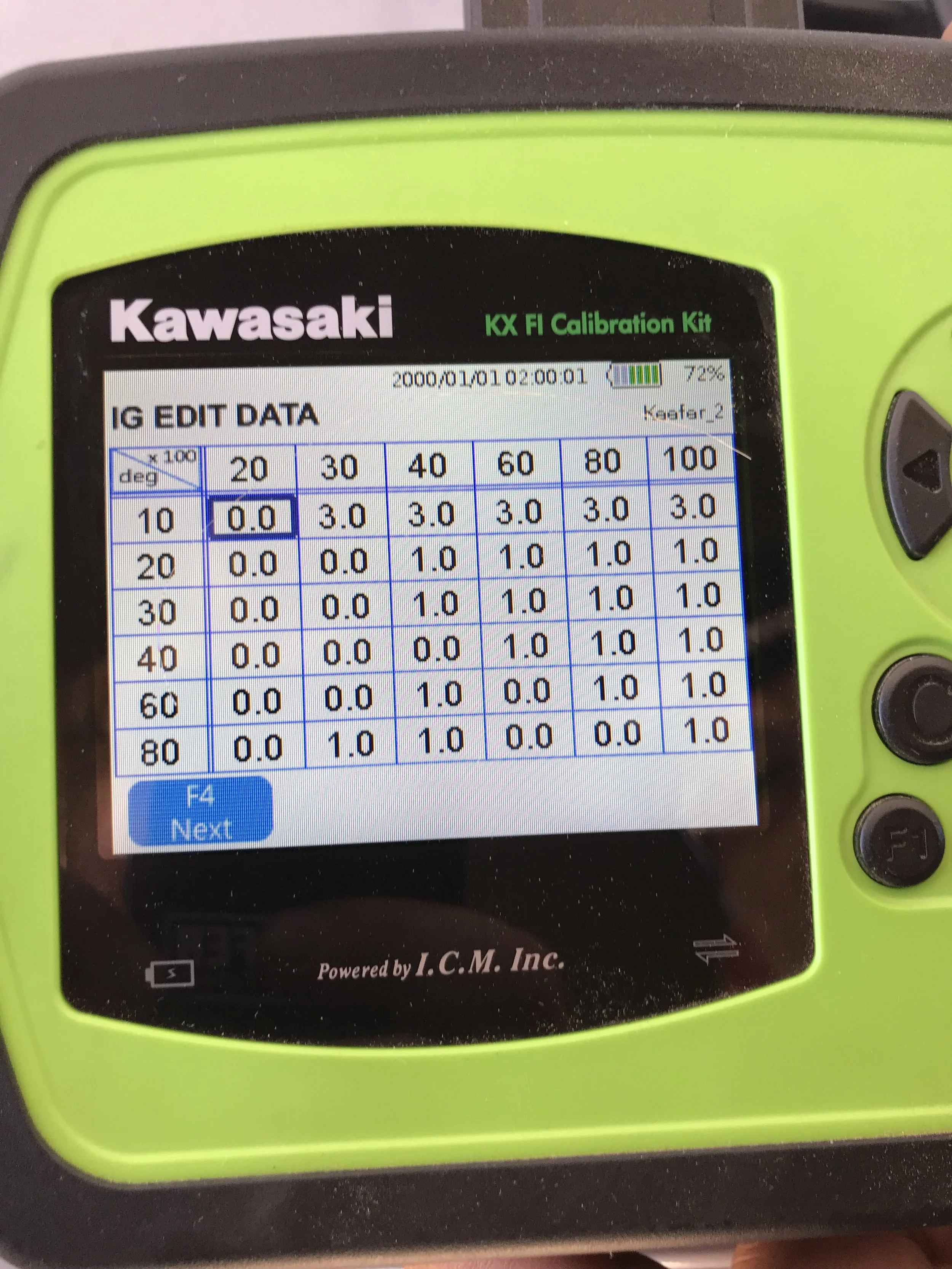

Black Coupler Ignition Map

White Coupler Fuel Map

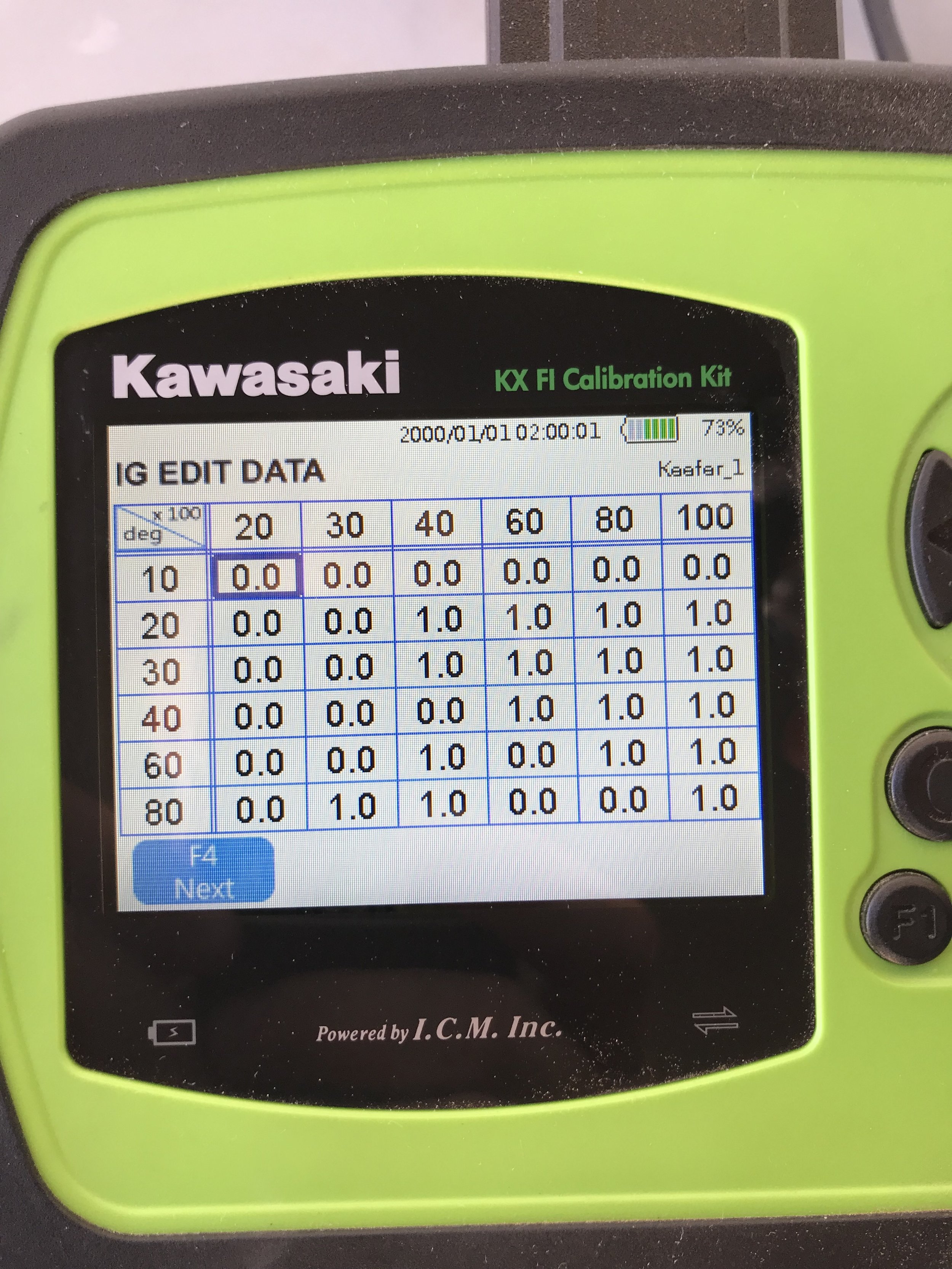

White Coupler Ignition Map

At the end of the day the FMF 4.1 RCT full titanium muffler system delivers a smoother roll on bottom end delivery with a mid to top end puling powerl that is better than stock (along with improved mid-top end RPM response). I will say this again….Being able to achieve a power delivery that is better than what an OEM muffler system can give you is very hard to do. FMF has achieved this with their 4.1 system on the 2019 KX450. Not only does it make power, but it also takes off some weight and looks better than the stock bazooka. I wanted some added control down low and more mid range (on the 2019 KX450) so with this FMF system I got what I was looking for. I am not going to sit here and tell you guys that every FMF system, for every machine is better than stock, but with this one they knocked it out of the park. Don't be scared to try the maps that are attached above, because with today's four-stroke technology, getting the correct mapping for a certain muffler can really make a difference.

Attention mechanically inclined riders!!!!! Please note that re-packing of the FMF muffler is important for the can’s lifespan. The muffler portion (or can) will start to leave hot spots/scarring when the packing starts to burn away from inside. Once you start seeing these “hot spot/scars/markings” on the muffler, remove and re-pack it ASAP. FMF offers re-packing kits and taking the can apart to re-pack is not that hard to do. I get around 12 hard engine hours before I see these markings and have to re-pack. If you run it past the recommended time, you run the chance of hurting performance and damaging the core (or perf) inside the muffler. Don’t be a dummy and waste your money, re-pack your muff!

If you have any questions about this test please email me at kris@keeferinctesting.com

2019 Kawasaki KX450 Clutch Mod

Do you have a 2019 Kawasaki KX450? If so, we are here to give you a little inside knowledge. The new 2019 KX450 is one great machine, but the doesn't mean it is perfect right? On our test bike we have experienced with some clutch drag and clutch lever movement when riding. Under heavy load (or acceleration on deeper tilled tracks) the clutch on the 2019 can drag and or the clutch lever can move. This is not something we liked, so we went to work with Kawasaki to remedy this problem.

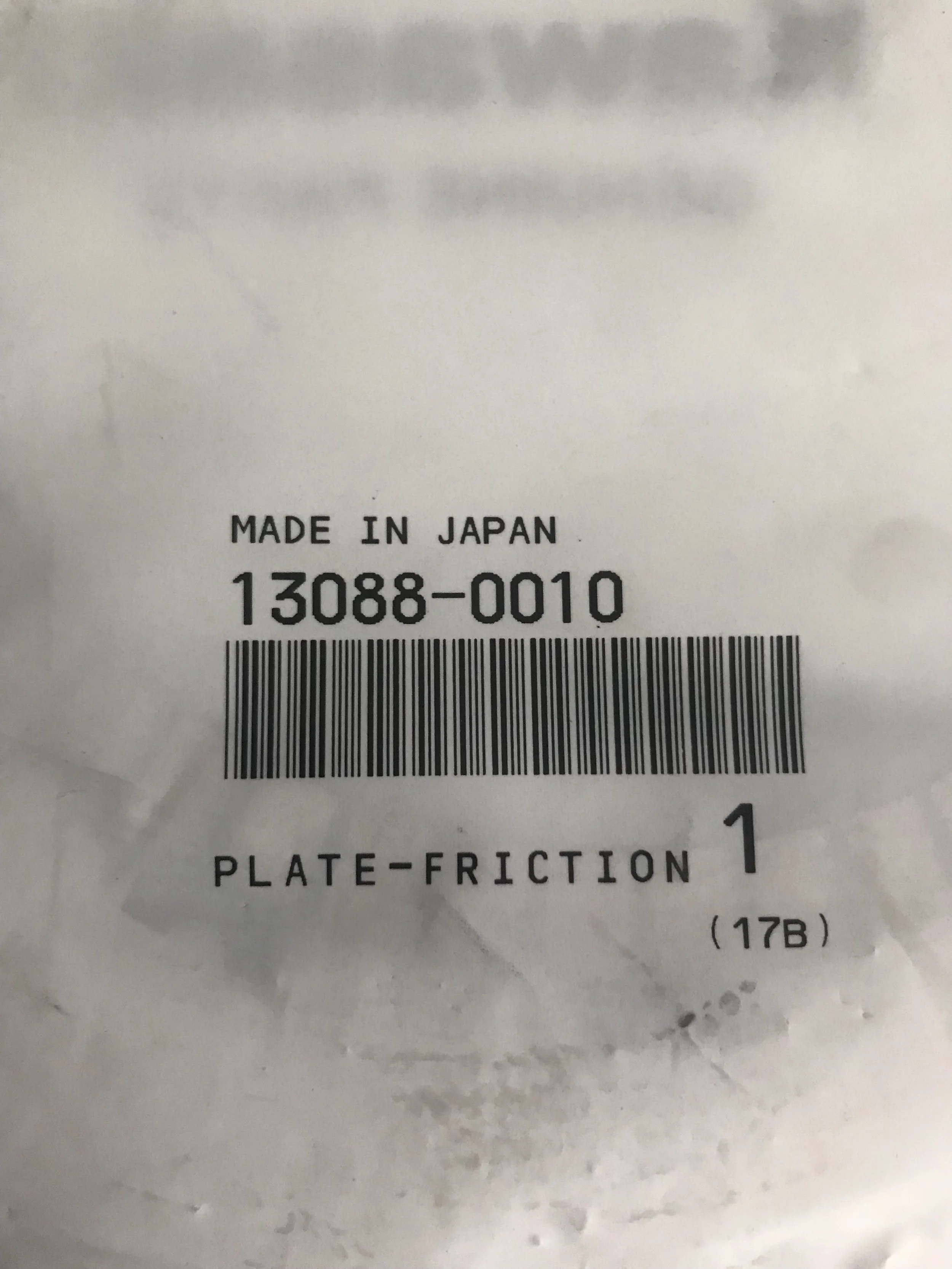

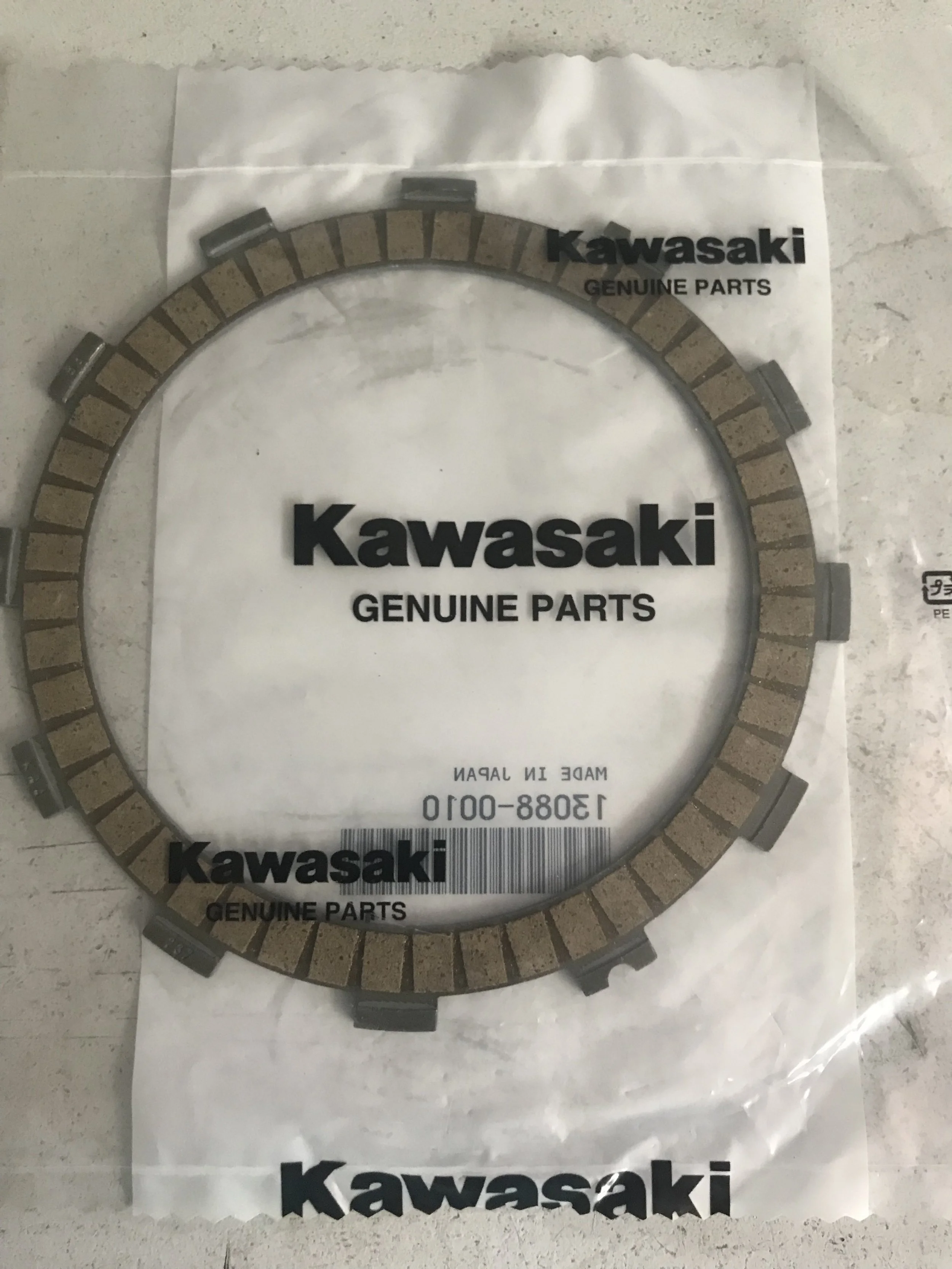

If you are reading this and you haven't felt any of these sensations while riding then DO NOT WORRY ABOUT IT. If you do notice a drag or lever movement, simply take the judder springs and narrow fiber plate out of your clutch and replace it with a standard fiber plate (as shown). That's it! Once this mod has been installed, the lever was much more consistent and the drag we felt out of corners was gone. Not only was the drag gone, but we also noticed that rear wheel traction was increased a little as well. It's a cheap fix and relatively easy to do. Enjoy your green machine!
